Science Leading to Recovery and Delisting of Puget Sound Rockfish

Using genetics, experimental fieldwork and computer modeling to determine whether rockfish species meet criteria and recovery goals of Endangered Species Act.

West Coast

Testing the Validity of ESA Listings with Genetics

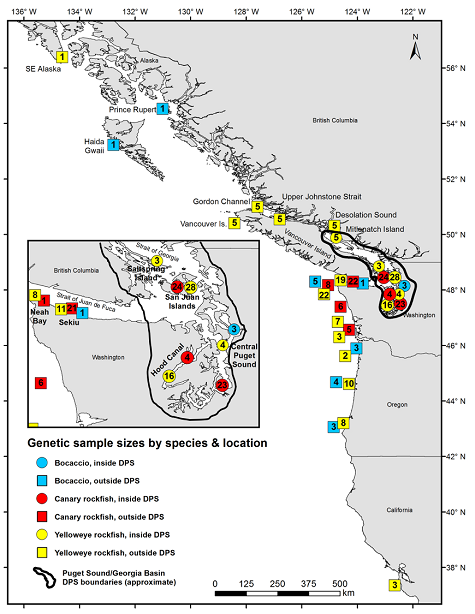

Figure 1 shows a map of the Puget Sound/Georgia Basin distinct population segment which encompasses all of Puget Sound and much of the inland waters of British Columbia along the southern half of Vancouver Island. Also shown is the general location and number of samples collected for each species that were used in subsequent analyses. — Figure 1. Map showing the Puget Sound/Georgia Basin distinct population segment (outlined) and general location and number of samples collected for each species (Andrews et al. 2018).

Population genetics is an essential tool for determining the appropriate taxonomic units of fish species. We listed Yelloweye Rockfish (Sebastes ruberrimus), Canary Rockfish (S. pinniger), and Bocaccio (S. paucispinis) in the inland waterways of Puget Sound, WA under the U.S. Endangered Species Act (ESA) in 2010.

These listings relied heavily on scientific evidence from other species or other geographic regions supporting these populations being 'discrete' taxonomic units. We used indirect information because little information was available for these species in Puget Sound. We collaborated with recreational fishing communities in Puget Sound to fill this gap. We fished with volunteer anglers to collect tissue samples (Fig. 1) and used population genetics analyses to determine whether individuals from the Puget Sound/Georgia Basin region were genetically similar or different from individuals collected from the outer coasts of the U.S. and Canada.

The top panel of Figure 2 shows the results from a principal components analysis that reveals three population clusters for yelloweye rockfish, separating the inland waters of Puget Sound and the Georgia Basin from coastal waters, plus a separate cluster of individuals from Hood Canal, WA. The bottom panel of Figure 2 shows a "shotgun" pattern of samples completely overlapping each other, revealing no population structure for canary rockfish across sampled geographic regions. Each symbol represents an indiv — Figure 2. Analyses reveal A) three population clusters for yelloweye rockfish and B) no population structure for canary rockfish across sampled geographic regions. Each symbol represents an individual fish and symbols closer to each are more genetically similar (Andrews et al. 2018).

Multiple analyses showed that Yelloweye Rockfish in Puget Sound and British Columbia, Canada were genetically different from coastal populations. Canary Rockfish showed no genetic differentiation (Fig. 2; Andrews et al. 2018). These results support the ESA designation status and the expansion of protected geographical boundaries for Yelloweye Rockfish. The findings also suggest Canary Rockfish in Puget Sound are not a 'discrete' population and may not meet the first ESA criterion.

The collaboration and cooperation among government agencies and fishing communities provided a framework for this research. The work led to two major management decisions:

The delisting of Canary Rockfish from the federal endangered species list - a first for any marine fish species.
Geographic expansion of population boundaries for Yelloweye Rockfish.

Can Rockfish Bycatch be Reduced in Popular Fisheries?

Figure 3 shows a recreational angler holding a copper rockfish caught as bycatch during targeted lingcod fishing in Puget Sound, WA. — Figure 3. Copper rockfish caught as bycatch during targeted lingcod fishing.

The ESA requires us to determine threats limiting the recovery and delisting of Yelloweye Rockfish (Sebastes ruberrimus) and Bocaccio (S. paucispinis). These species are listed as 'threatened' and 'endangered,' respectively, in Puget Sound, WA. One obvious threat to many fish populations is mortality from either targeted fishing or indirectly as bycatch in other fisheries.

The Washington Department of Fish & Wildlife (WDFW) implemented new regulations in 2010 that prohibited fishing for, retaining or possessing any rockfish species and prohibited all 'bottomfish' fishing deeper than 120 feet within the greater Puget Sound region. These rules significantly reduced the geographic scope of recreational fishing for some popular fisheries, including lingcod (Ophiodon elongatus).

Previously, charter boat captains and volunteer anglers told us that they rarely catch rockfish in the lingcod fishery when they use large, live bait (such as Pacific sanddab (Citharichthys sordidus) or kelp greenling (Hexagrammos decagrammus)). Our latest research allowed us to experimentally test a question that might address both the conservation of rockfish species and recreational fishing opportunities.

Figure 4 is a four-panel figure showing a recreational angler holding a lingcod caught during targeted lingcod fishing plus three common bait types we used to test whether rockfish bycatch could be reduced: two green artificial dart lures, a live Pacific sanddab and three different sizes of frozen herring. — Figure 4. Targeted lingcod with common bait types tested: artificial jigs, live sanddab and frozen herring.

In this study, we tested whether catch-per-unit-effort of rockfish bycatch (Fig. 3) and targeted lingcod differed among commonly used bait types (live, frozen, and artificial; Fig. 4) in the Puget Sound lingcod fishery.

We chartered local recreational fishing charter captains and targeted lingcod across 12 sites in two regions of the discrete population segment at fishing depths from 26 – 425 feet (n=37 days). We used one of the three bait types at one of three sites each day, varying the bait type across sites on subsequent days.

We found rates of targeted lingcod catch were similar for each bait type. Further, using large, live bait types resulted in lower rockfish bycatch (Fig. 5). We caught 11 yelloweye rockfish, all at depths greater than 150 feet and with one of the 11 caught with live, large bait. This result indicated a risk of catching ESA-listed rockfish with live, large bait, but less risk than some other commonly used baits.

Figure 5 shows the distribution distribution of catch-per-unit-effort as boxplots for targeted lingcod on the left and rockfish bycatch on the right. The distribution and mean catch-per-unit-effort for lingcod was similar across three commonly used bait types in the Puget Sound recreational lingcod fishery, while rockfish bycatch was highest when using frozen herring and artificial dart lures and significantly lower when using live, large bait types such as Pacific sanddab and kelp greenling. — Figure 5. Mean (red diamond) and distribution of catch-per-unit-effort for targeted lingcod (left) and rockfish bycatch (right) across three commonly used bait types in the Puget Sound recreational lingcod fishery.

Understanding the magnitude and methods available to reduce bycatch in fisheries is an essential step in making decisions concerning the tradeoffs between conservation efforts of threatened species and impacts on fishing communities.

How Will We Know When Rockfish in Puget Sound Have Recovered?

Figure 6 shows a four panel figure with WDFW biologist Bob Pacunski piloting the ROV on board the RV Molluscan in the upper left panel; WDFW's yellow Falcon ROV sitting on the back deck of the RV Molluscan prior to deployment in the middle left panel; an image of an adult yelloweye rockfish captured during an ROV survey with two green laser dots on the side of the fish measuring 10 cm between dots; and a map of PUget Sound with each of the 483 ROV survey stations plotted for the 2015 survey of Puget Sound P — Figure 6 shows a four panel figure with WDFW biologist Bob Pacunski piloting the ROV on board the RV Molluscan in the upper left panel; WDFW's yellow Falcon ROV sitting on the back deck of the RV Molluscan prior to deployment in the middle left panel; an image of an adult yelloweye rockfish captured during an ROV survey with two green laser dots on the side of the fish measuring 10 cm between dots; and a map of Puget Sound with each of the 483 ROV survey stations plotted for the 2015 survey of Puget Sound Proper with each station categorized as high, medium or low probability of being good habitat for yelloweye rockfish.

The Rockfish Recovery Plan lays out specific criteria that must be met for each species to be down-listed from "endangered" to "threatened" and ultimately delisted from the Endangered Species Act. These criteria require surveys that count the number of individuals in Puget Sound and the Georgia Basin and analytical methods to calculate each population's current status and trend.

The first step is to develop a survey that can count these rare fish populations that live in complex, rocky habitats. The Washington Department of Fish & Wildlife has developed methods using a remotely-operated vehicle (ROV) to target these habitats (Fig. 6). They plan to run the survey once every five years.

The second step is to use the abundance estimates and size distribution of observed individuals from WDFW's ROV survey and life-history characteristics of each species to calculate status metrics used in data-poor stock assessments (Fig. 7).

Figure 7 shows the analytical process of calculating the status of a population using data-poor methods. The first uses the counts and size estimates of each species from the ROV survey. These estimates are then combined with maturity and selectivity estimates to estimate the "length-based spawning potential ratio". This ratio provides an estimate of the population's relative stock status compared to an unfished stock and allows managers to compare this indicator to target reference points related to ESA-li — Figure 7. Analytical process of calculating status of a population using data-poor methods.

The final step is to compare the outputs of steps 1 and 2 across multiple surveys over time to determine the trend of each species' population. We then compare the overall status and trend to the downlisting and delisting criteria in the Recovery Plan to determine how these populations are progressing toward management goals (Fig. 8).

Figure 8 shows the recovery criteria for Yelloweye Rockfish from the Rockfish Recovery Plan based on three scenarios of spawning potential ratio (SPR) values. Based on these criteria, Yelloweye Rockfish could be delisted when (1) their SPR value is at least at 15% for 25 years, (2) their SPR value is between 20 to 24% for 15 years or if (3) their SPR value is greater than 25% for 10 years. — Figure 8. Recovery criteria for Yelloweye Rockfish based on three scenarios of spawning potential ratio values (NOAA Fisheries 2017).
